BSP MALE DOUBLE FOR 60°SEAT BONDED SEAL hydraulic Adapter is the most widely used model, from G1/8 to 2'. And support OEM, ODM
1:Compatibility: BSP threaded fittings are compatible with a wide range of liquids and gases, including water, oil, and compressed air.
2:Corrosion Resistance: these fittings are generally made of high-quality materials such as stainless steel or brass, which offer superior resistance to rust and corrosion.
3:Durability: BSP threaded fittings are designed to last for a long time without requiring significant maintenance or replacement.
4:Flexibility: These fittings can be easily installed, removed, and repositioned, making them ideal for applications that require frequent changes.
5:Pressure Resistance: BSP threaded fittings can withstand high-pressure applications, making them suitable for a wide range of industrial and commercial uses.
Part No.: 1B
Description: BSPP MALE DOUBLE USE FOR 60° SEAT
OR BONDED SEAL
Convertible code:
Material: Carbon Steel 45#
Surface Treatment: Zinc, Cr3+ Plating, Clear White
Corrossion Resistent Hour: 120h or longer
Degree: Straight

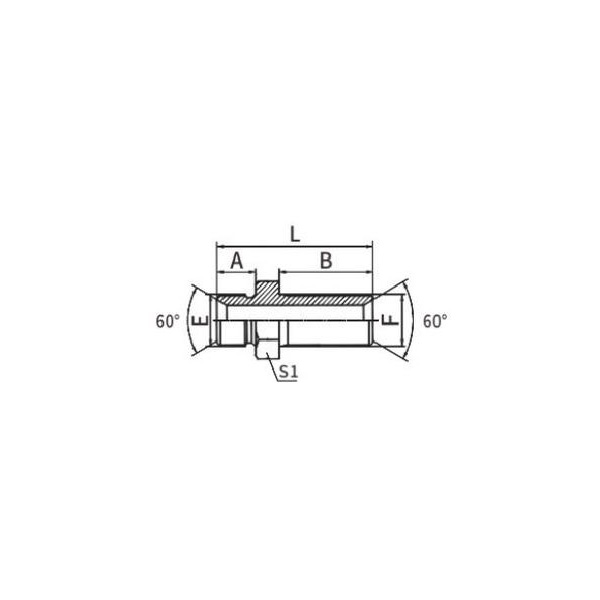

| PART NO. | THREAD | DIMENSIONS | ||||
| E | F | A | B | L | S1 | |
| 1B-02 | G1/8"X28 | G1/8"X28 | 10 | 10 | 26 | 14 |
| 1B-02-04 | G1/8"X28 | G1/4"X19 | 10 | 12 | 28 | 19 |
| 1B-02-06 | G1/8"X28 | G3/8"X19 | 10 | 13.5 | 31.5 | 22 |
| 1B-02-08 | G1/8"X28 | G1/2"X14 | 10 | 16 | 36 | 27 |
| 1B-04 | G1/4"X19 | G1/4"X19 | 12 | 12 | 30 | 19 |
| 1B-04-08 | G1/4"X19 | G1/2"X14 | 12 | 16 | 38 | 27 |
| 1B-04-10 | G1/4"X19 | G5/8"X14 | 12 | 17.5 | 39.5 | 30 |
| 1B-06 | G3/8"X19 | G3/8"X19 | 13.5 | 13.5 | 33 | 22 |
| 1B-06-08 | G3/8"X19 | G1/2"X14 | 13.5 | 16 | 39.5 | 27 |
| 1B-06-10 | G3/8"X19 | G5/8"X14 | 13.5 | 17.5 | 42 | 30 |
| 1B-06-12 | G3/8"X19 | G3/4"X14 | 13.5 | 18.5 | 43 | 32 |
| 1B-08 | G1/2"X14 | G1/2"X14 | 16 | 16 | 42 | 27 |
| 1B-08-10 | G1/2"X14 | G5/8"X14 | 16 | 17.5 | 43.5 | 30 |
| 1B-08-12 | G1/2"X14 | G3/4"X14 | 16 | 18.5 | 45.5 | 32 |
| 1B-10 | G5/8"X14 | G5/8"X14 | 17.5 | 17.5 | 45 | 30 |
| 1B-10-12 | G5/8"X14 | G3/4"X14 | 17.5 | 18.5 | 47 | 32 |
| 1B-10-16 | G5/8"X14 | G1"X11 | 17.5 | 20.5 | 51.5 | 41 |
| 1B-12 | G3/4"X14 | G3/4"X14 | 18.5 | 18.5 | 48 | 32 |
| 1B-12-16 | G3/4"X14 | G1"X11 | 18.5 | 20.5 | 52.5 | 41 |
| 1B-12-20 | G3/4"X14 | G1.1/4"X11 | 18.5 | 20.5 | 56 | 50 |
| 1B-16 | G1"X11 | G1"X11 | 20.5 | 20.5 | 54 | 41 |
| 1B-16-20 | G1"X11 | G1.1/4"X11 | 20.5 | 20.5 | 58 | 50 |
| 1B-16-24 | G1"X11 | G1.1/2"X11 | 20.5 | 23 | 60.5 | 55 |
| 1B-20 | G1.1/4"X11 | G1.1/4"X11 | 20.5 | 20.5 | 58 | 50 |
| 1B-20-24 | G1.1/4"X11 | G1.1/2"X11 | 20.5 | 23 | 60.5 | 55 |
| 1B-24 | G1.1/2"X11 | G1.1/2"X11 | 23 | 23 | 63 | 55 |
| 1B-24-32 | G1.1/2"X11 | G2"X11 | 23 | 25.5 | 66.5 | 70 |
| 1B-32 | G2"X11 | G2"X11 | 25.5 | 25.5 | 68 | 70 |
| 1B-40 | G2.1/2"X11 | G2.1/2"X11 | 32 | 32 | 81 | 90 |
| 1B-48 | G3"X11 | G3"X11 | 36 | 36 | 92 | 100 |
BSP MALE DOUBLE FOR 60°SEAT BONDED SEAL hydraulic Adapter is widely used in a variety of applications, the adapter is commonly used including Zinc plated, Zn-Ni plated, Cr3, and Cr6 plated
With our solid manufacturing process, this BSP MALE DOUBLE FOR 60° SEAT BONDED SEAL hydraulic Adapter can work for a long time in quite harsh and harsh environments, with very excellent corrosion resistance and stability
Usually this BSP MALE DOUBLE FOR 60°SEAT BONDED SEAL hydraulic Adapter is produced using a variety of materials, including carbon steel, stainless steel, brass and other materials. We specialize in providing perfect solutions for your fluid connections. We can also customize what you need. material or galvanized standard to meet any customer's customized requirements
Wayfong is a factory with 31 years of manufacturing experience. We carry out supporting production for many large customers. If you are looking for hydraulic adapters with high quality and good price
Wayfong is definitely an expert in fluid connection solutions that you can't miss
