Part No.: 2J
Description: JIC MALE 74°CONE/JIC FEMALE 74°SEAT
Convertible code:
Material: Carbon Steel 45#
Surface Treatment: Zinc, Cr3+ Plating, Clear White
Corrossion Resistent Hour: 120h or longer
Degree: Straight

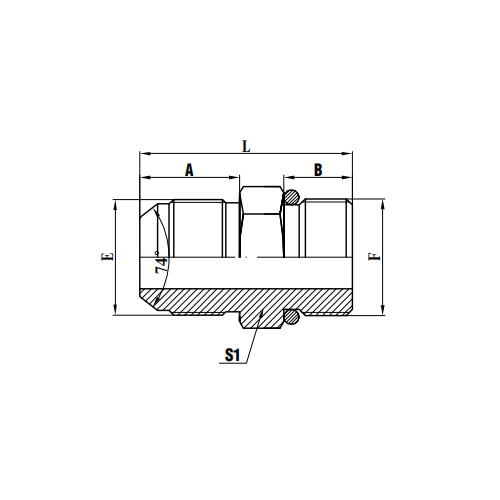

| PART NO. | THREAD | DIMENSIONS | ||||||
| E | F | A | B | L | S1 | S2 | ||
| 2J-04 | 7/16"X20 | 7/16"X20 | 14 | 9 | 28 | 12 | 15 | |
| 2J-04-05 | 7/16"X20 | 1/2"X20 | 14 | 9.5 | 28.5 | 12 | 17 | |
| 2J-04-06 | 7/16"X20 | 9/16"X18 | 14 | 10.5 | 28.5 | 14 | 19 | |
| 2J-04-08 | 7/16"X20 | 3/4"X16 | 14 | 11 | 30.5 | 19 | 24 | |
| 2J-05 | 1/2"X20 | 1/2"X20 | 14 | 9.5 | 29 | 14 | 17 | |
| 2J-05-08 | 1/2"X20 | 3/4"X16 | 14 | 11 | 30.5 | 19 | 24 | |
| 2J-06 | 9/16"X18 | 9/16"X18 | 14.1 | 10.5 | 29 | 17 | 19 | |
| 2J-06-08 | 9/16"X18 | 3/4'X16 | 14.1 | 11 | 31 | 19 | 24 | |
| 2J-06-10 | 9/16"X18 | 7/8"X14 | 14.1 | 13 | 33.5 | 22 | 27 | |
| 2J-08 | 3/4"X16 | 3/4"X16 | 16.7 | 11 | 36 | 22 | 24 | |
| 2J-08-06 | 3/4"X16 | 9/16"X18 | 16.7 | 10.5 | 34 | 22 | 19 | |
| 2J-08-10 | 3/4"X16 | 7/8"X14 | 16.7 | 13 | 36.5 | 22 | 27 | |
| 2J-08-12 | 3/4"X16 | 1.1/16"X12 | 16.7 | 15 | 39.5 | 27 | 32 | |
| 2J-10 | 7/8"X14 | 7/8"X14 | 19.3 | 13 | 39 | 24 | 27 | |
| 2J-10-08 | 7/8"X14 | 3/4"X16 | 19.3 | 11 | 38 | 24 | 24 | |
| 2J-10-12 | 7/8"X14 | 1.1/16"X12 | 19.3 | 15 | 42 | 27 | 32 | |
| 2J-12 | 1.1/16"X12 | 1.1/16"X12 | 21.9 | 15 | 44.5 | 30 | 32 | |
| 2J-12-10 | 1.1/16"X12 | 7/8"X14 | 21.9 | 13 | 43.5 | 30 | 27 | |
| 2J-12-16 | 1.1/16"X12 | 1.5/16"X12 | 21.9 | 16 | 45.5 | 36 | 41 | |
| 2J-16 | 1.5/16"X12 | 1.5/16"X12 | 23.1 | 16 | 46.5 | 36 | 41 | |
| 2J-16-20 | 1.5/16"X12 | 1.5/8"X12 | 23.1 | 17 | 53 | 41 | 50 | |
| 2J-20 | 1.5/8"X12 | 1.5/8"X12 | 24.3 | 17 | 54.5 | 46 | 50 | |
| 2J-20-24 | 1.5/8"X12 | 1.7/8"X12 | 24.3 | 20 | 55.5 | 46 | 55 | |
| 2J-24 | 1.7/8"X12 | 1.7/8"X12 | 27.5 | 20 | 61 | 50 | 55 | |
| 2J-24-32 | 1.7/8"X12 | 2.1/2"X12 | 27.5 | 24.5 | 63 | 65 | 75 | |
| 2J-32 | 2.1/2"X12 | 2.1/2"X12 | 33.9 | 24.5 | 69.5 | 65 | 75 | |
Note: Nutand sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metrictube,the nut NB200 and sleeve NB300 is suitable for inch tube.
The JIC Male 74° Cone to JIC Female 74° Seat fitting combination is a standard hydraulic connection used widely in fluid power systems. This type of connection ensures a tight and leak-proof seal, critical for maintaining system pressure and preventing fluid leakage.
The JIC Male 74° Cone fitting features a male connector with a cone-shaped end that tapers at a 74-degree angle. This design allows for a metal-to-metal seal when mated with a compatible JIC Female 74° Seat fitting. The female fitting has a corresponding seat designed to receive the male cone, creating a secure and leak-resistant connection.
These fittings are typically made from durable materials, such as carbon steel or stainless steel, and often come with protective coatings to enhance corrosion resistance and prolong service life. They are designed to withstand high pressures, making them suitable for use in demanding hydraulic applications.
The JIC Male 74° Cone/JIC Female 74° Seat connection is commonly found in various hydraulic systems, including industrial machinery, heavy equipment, and automotive applications. It provides a robust and reliable means of connecting hydraulic lines, ensuring efficient fluid transfer and system operation.
In summary, the JIC Male 74° Cone/JIC Female 74° Seat fitting combination offers a secure and leak-proof connection solution for hydraulic systems. Its design, durability, and widespread use make it a trusted and essential component in fluid power applications.
