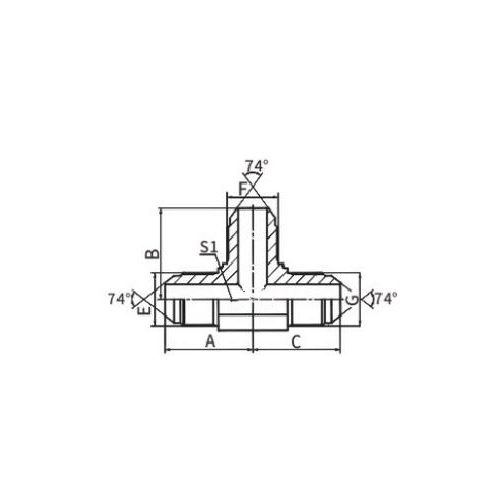

JIC Male 74°Cone Tee

Part No.: AJ

Description: JIC MALE 74°CONE TEE

Convertible code:

Material: Carbon Steel 45#

Surface Treatment: Zinc, Cr3+ Plating, Clear White

Corrossion Resistent Hour: 120h or longer

Degree: Three Way Tee

Note: Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metrictube,the nut NB200 and sleeve NB300 is suitable for inch tube.

The JIC Male 74° Cone Tee is a hydraulic fitting that branches into three directions, featuring a JIC (Joint Industry Council) male connector with a 74-degree cone seat at each end. This tee fitting allows for the distribution or combination of fluid flow in multiple directions within a hydraulic system.

The 74-degree cone seats of the JIC connectors ensure a tight and leak-proof seal when mated with compatible female fittings. This design provides a metal-to-metal contact surface, resulting in a robust and reliable connection that can withstand high pressures without leaking.

JIC Male 74° Cone Tee fittings are typically constructed from durable materials, such as carbon steel or stainless steel, to ensure longevity and performance in demanding hydraulic systems. These fittings often undergo zinc plating or other protective treatments to enhance corrosion resistance and prolong their service life.

The tee configuration of this fitting makes it ideal for use in systems where fluid needs to be distributed to multiple locations or combined from different sources. By allowing fluid to flow in three directions, the JIC Male 74° Cone Tee offers versatility and efficiency in hydraulic system designs.

In summary, the JIC Male 74° Cone Tee is a robust and leak-proof fitting that allows for the distribution or combination of fluid flow in hydraulic systems. Its metal-to-metal sealing design and durable construction make it a reliable choice for demanding fluid power applications.
