Hose Ferrule
SAE 100R9AT-R12, EN856-4SP/04-16 ED

SAE 100R9AT-R12, EN856-4SP/04-16 ED

Weifong is a Chinese company that has specialized in manufacturing and supplying hydraulic hoses, particularly the SAE 100R9AT-R12, EN856-4SP/04-16 ED, for many years. They are interested in establishing a long-term business relationship with potential customers.


High quality SAE 100R9AT-R12, EN856-4SP/04-16 ED is offered by China manufacturer Weifong. Buy SAE 100R9AT-R12, EN856-4SP/04-16 ED which is of high quality directly with low price.

Part No.: 00402

Description: FERRULE FOR SAE 100R9AT-R12, EN856-4SP/04-16 ED

Convertible code:

Material: Carbon Steel 20#

Surface Treatment: Zinc, Cr3+ Plating, Clear White

Corrossion Resistent Hour: 120h or longer

Degree: Straight

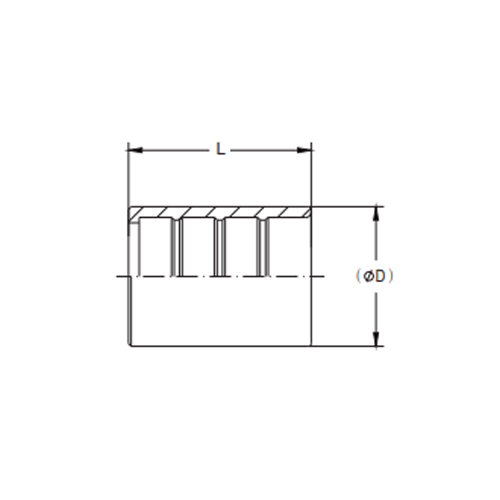

PART NO. HOSE BORE DIMENSIONS
DN DASH L D
00402-04 6 04 30 21.5
00402-06 10 06 33 26
00402-08 12 08 34 30
00402-10 16 10 39 33
00402-12 20 12 40 38
00402-16 25 16 51 46
00402-20 32 20 60 55
00402-24 40 24 70 63
00402-32 50 32 72 77




SAE 100R9AT-R12 and EN856-4SP/04-16 ED are two different specifications of hydraulic hoses.


SAE 100R9AT-R12 is a four-layer steel wire-bound hydraulic hose. It has a high pressure resistance capacity, able to withstand very high pressure and shock loads. It performs well under conditions of high temperature, high pressure, high vibration, and harsh environments, making it suitable for industries such as engineering machinery, agricultural machinery, petroleum, and chemical.


EN856-4SP/04-16 ED is a four-layer steel wire-bound hydraulic hose that has extremely high pulse pressure performance and strength. It has excellent torsion resistance which makes it ideal for deep well drilling machines and systems with high continuous power coefficient values.


Both of these hydraulic hoses use high-strength, wear-resistant materials and the inner layer is made of synthetic rubber, which protects the flow of liquid inside the pipe and increases the service life of the hose.


The SAE 100R9AT-R12 and EN856-4SP/04-16 ED hoses are both renowned for their unique features and excellent performance. Here are their key characteristics described in English:


SAE 100R9AT-R12 Hose Features:


Exceptional Pressure Capability: SAE 100R9AT-R12 hose is designed to handle high-pressure applications with ease, providing reliable performance even under extreme pressure conditions.


Robust Construction: Constructed from durable materials, this hose offers exceptional resistance to abrasion, cuts, and tears, ensuring long-lasting performance even in harsh environments.


Flexible Design: Its flexible nature allows for easy installation and routing in tight spaces, making it a suitable choice for complex piping systems.


Temperature Resistance: This hose can withstand a wide range of temperatures without compromising its performance, making it suitable for use in various environmental conditions.


Excellent Chemical Compatibility: SAE 100R9AT-R12 hose demonstrates good resistance to a range of chemicals, ensuring safe and reliable operation in chemically aggressive environments.


EN856-4SP/04-16 ED Hose Features:


Superior Pressure Rating: EN856-4SP/04-16 ED hose is renowned for its high-pressure rating, capable of handling extreme pressure demands without compromising performance.


Outstanding Flexibility and Durability: This hose offers excellent flexibility and durability, making it suitable for dynamic applications where frequent bending and movement are required.


Smooth Bore Design: The smooth inner bore of the hose reduces fluid friction, improving flow rates and overall efficiency.


Excellent Resistance to Abrasion and Impact: The hose material is highly resistant to abrasion and impact, ensuring longer service life even in high-wear applications.


Wide Operating Temperature Range: EN856-4SP/04-16 ED hose can operate within a broad temperature range, making it suitable for use in diverse environmental conditions.


Both SAE 100R9AT-R12 and EN856-4SP/04-16 ED hoses offer exceptional performance and reliability in various applications, from industrial fluid transfer systems to mobile equipment. Their unique features ensure safe and efficient operation, even in challenging conditions.
