Hydraulic systems are widely used in industries such as construction, manufacturing, agriculture, and transportation, where reliability and precision are critical. Among the essential components ensuring seamless performance is the DIN Hydraulic Adapter — a key connector that guarantees leak-free and efficient fluid transmission. Understanding what makes this component special and how it contributes to system stability is vital for anyone working with hydraulic equipment.

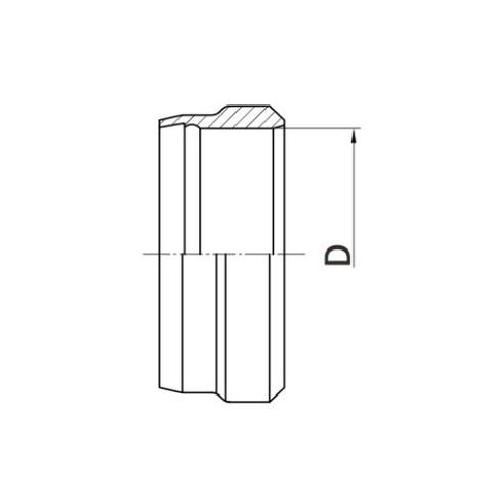

A DIN Hydraulic Adapter is a precision-engineered connector designed to meet DIN (Deutsches Institut für Normung) standards — the German national standards for engineering excellence. These adapters connect hydraulic hoses, tubes, and fittings, ensuring tight, reliable joints that prevent fluid leaks under high pressure.
They serve as the interface between different hydraulic components, enabling smooth transitions between various thread types or diameters. Their key purpose is to maintain system integrity under high-pressure and high-temperature conditions.
At NINGBO WAYFONG HYDRAULIC MACHINERY CO., LTD., our DIN Hydraulic Adapters are designed with meticulous precision and tested under strict quality standards to guarantee long-term durability and compatibility with global hydraulic systems.
Choosing a DIN Hydraulic Adapter ensures consistency, safety, and performance. DIN standards are recognized worldwide for their reliability and precision in hydraulic connections. Here are the main reasons to consider them:
Universal Compatibility: Works with various thread forms, including metric, BSP, and JIC systems.
Leak-Free Design: Engineered sealing surfaces prevent oil leakage and fluid loss.
Corrosion Resistance: Manufactured using high-quality materials such as carbon steel, stainless steel, or brass with protective coatings.
Pressure Endurance: Capable of withstanding extreme hydraulic pressures up to 6000 PSI or more.
Ease of Installation: Thread and seat designs allow for fast, secure connections without special tools.
By using DIN Hydraulic Adapters from NINGBO WAYFONG HYDRAULIC MACHINERY CO., LTD., you can be assured of consistent performance across demanding applications such as excavators, cranes, and injection molding machines.
Below is a summary of the technical parameters typically offered by NINGBO WAYFONG HYDRAULIC MACHINERY CO., LTD. for our DIN Hydraulic Adapter series:
| Parameter | Specification |
|---|---|
| Standard | DIN 2353 / ISO 8434-1 |
| Thread Type | Metric (M), BSP, BSPT, NPT, JIC (on request) |
| Material | Carbon Steel, Stainless Steel (AISI 316), Brass |
| Surface Treatment | Zinc-plated, Cr3+, Nickel, or Customized |
| Working Pressure | Up to 6000 PSI |
| Temperature Range | -40°C to +120°C |
| Sealing Type | O-ring Face Seal, Cutting Ring, 24° Cone Seat |
| Size Range | M6 to M52 or customized sizes |
Each adapter is machined to exact tolerances, ensuring perfect alignment and safe hydraulic operation.
The performance of any hydraulic system depends on the quality and precision of its connectors. A DIN Hydraulic Adapter ensures that pressure, flow, and temperature are maintained consistently across the system.
Key performance benefits include:
Reduced Leakage Risks – The O-ring or cutting ring connection provides superior sealing under high pressure.
Extended System Lifespan – High-quality materials prevent wear and corrosion, reducing maintenance downtime.
Efficient Energy Use – Smooth internal passage minimizes fluid resistance, improving system efficiency.
Vibration Resistance – The solid connection minimizes vibration-related failures.
With decades of experience, NINGBO WAYFONG HYDRAULIC MACHINERY CO., LTD. continues to enhance the design and durability of DIN Hydraulic Adapters to meet the evolving needs of industrial machinery.
DIN Hydraulic Adapters are essential in a wide range of industrial and mobile hydraulic applications:
Construction Machinery: Excavators, bulldozers, loaders, and cranes.
Agricultural Equipment: Tractors, sprayers, and harvesters.
Manufacturing Systems: Injection molding, stamping, and material handling.
Marine and Offshore Equipment: Hydraulic winches, steering systems, and lifting platforms.
Energy Sector: Oil and gas drilling, wind turbine hydraulics, and mining operations.
Their robust construction allows them to function reliably even in high-vibration, high-pressure, or corrosive environments.
Q1: What makes a DIN Hydraulic Adapter different from other types of hydraulic fittings?
A1: The DIN Hydraulic Adapter adheres to strict German engineering standards (DIN 2353), which guarantee dimensional accuracy, durability, and leak-proof performance. It provides a 24° cone seat connection that offers excellent sealing under high pressure, unlike general fittings that may rely solely on thread engagement.
Q2: Can DIN Hydraulic Adapters be used with other international thread systems?
A2: Yes. DIN Hydraulic Adapters can be customized to interface with BSP, NPT, or JIC systems. This makes them highly versatile in multinational industrial settings where different standards coexist.
Q3: What materials are recommended for harsh environments?
A3: For corrosive or marine applications, stainless steel (AISI 316) DIN Hydraulic Adapters are the best choice due to their superior resistance to rust and oxidation. Carbon steel options are ideal for general industrial use.
Q4: How do I ensure the correct installation of a DIN Hydraulic Adapter?
A4: Always clean the threads, apply proper torque according to manufacturer specifications, and use compatible sealing materials. Over-tightening should be avoided to prevent thread damage and ensure long-term performance.
NINGBO WAYFONG HYDRAULIC MACHINERY CO., LTD. is a trusted manufacturer specializing in precision hydraulic fittings, adapters, and connectors. With years of experience serving global OEMs and distributors, we provide high-quality DIN Hydraulic Adapters that meet ISO and DIN standards.
Our advantages include:
Advanced CNC machining technology for perfect dimensional accuracy.
In-house quality inspection and pressure testing.
Custom designs available for non-standard requirements.
Fast delivery and global export support.
We are committed to offering cost-effective hydraulic connection solutions that ensure reliability, safety, and performance in every application.
Absolutely. If you demand high precision, durability, and compatibility in your hydraulic systems, the DIN Hydraulic Adapter is a critical component you can rely on. It ensures seamless integration, leak-proof performance, and long-term stability — all backed by the trusted quality of NINGBO WAYFONG HYDRAULIC MACHINERY CO., LTD.
For more details, specifications, or bulk purchase inquiries, please contact NINGBO WAYFONG HYDRAULIC MACHINERY CO., LTD. — your dependable partner in hydraulic connection solutions.
-
