Part No.: 1Q
Description: 1Q METRIC MALE 74° CONE SEAT
Convertible code:
Material: Carbon Steel 45#
Surface Treatment: Zinc, Cr3+ Plating, Clear White
Corrossion Resistent Hour: 120h or longer
Degree: Straight

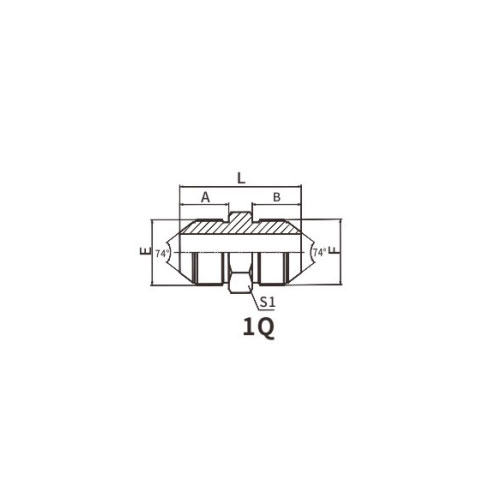

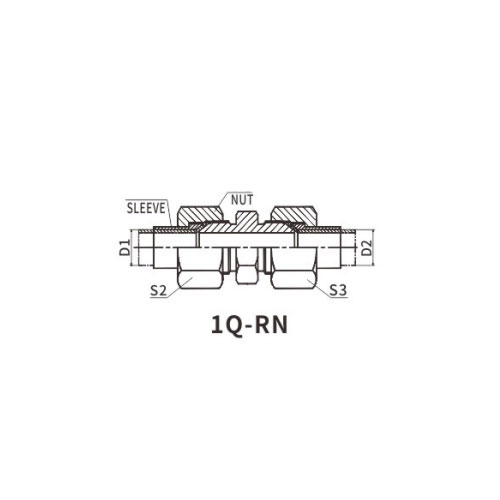

| PART NO | THREAD | TUBE O.D. | DIMENSIONS | |||||
| E | F | D1,D2 | A | B | L | S1 | S2,S3 | |
| 1Q-10 | M10X1 | M10X1 | 5 | 12 | 12 | 30 | 12 | 14 |
| 1Q-12 | M12X1.5 | M12X1.5 | 6 | 15.7 | 15.7 | 37.5 | 14 | 14 |
| 1Q-14 | M14X1.5 | M14X1.5 | 8 | 17 | 17 | 40 | 17 | 17 |
| 1Q-16 | M16X1.5 | M16X1.5 | 10 | 18 | 18 | 42 | 17 | 19 |
| 1Q-18 | M18X1.5 | M18X1.5 | 12 | 18 | 18 | 42 | 19 | 22 |
| 1Q-24 | M24X1.5 | M24X1.5 | 16 | 20 | 20 | 50 | 27 | 30 |
| 1Q-27 | M27X1.5 | M27X1.5 | 18 | 20 | 20 | 50 | 30 | 32 |
| 1Q-30 | M30X1.5 | M30X1.5 | 20 | 23 | 23 | 57 | 32 | 36 |
| 1Q-30E | M30X2 | M30X2 | 20 | 26 | 26 | 63 | 32 | 36 |
| 1Q-33 | M33X2 | M33X2 | 22 | 26 | 26 | 63 | 36 | 38 |
| 1Q-36 | M36X2 | M36X2 | 25 | 26 | 26 | 63 | 38 | 41 |
| 1Q-39 | M39X2 | M39X2 | 28 | 26 | 26 | 65 | 41 | 46 |
| 1Q-42 | M42X2 | M42X2 | 32 | 28.5 | 28.5 | 70 | 46 | 50 |
| 1Q-45 | M45X2 | M45X2 | 34 | 28.5 | 28.5 | 70 | 46 | 55 |
1Q Metric Male 74° Cone Seat English Introduction
The 1Q Metric Male 74° Cone Seat is a precision-engineered component designed to provide a secure and leak-free seal in metric-based fluid systems. This unique seat is specifically tailored for use with male fittings that feature a 74° cone seal, ensuring a robust and reliable connection.
The metric male thread of the 1Q Cone Seat is carefully crafted to mate perfectly with corresponding female threads, creating a snug and secure fit. This threading system not only ensures a strong connection but also allows for easy installation and disassembly, making maintenance and repairs a breeze.
The 74° cone seal is the heart of this component, offering a leak-resistant connection that can withstand high pressures and temperatures. The tapered design of the cone ensures a tight and secure seal when mated with a compatible male cone fitting, preventing leaks and ensuring optimal fluid transfer efficiency.
Manufactured from high-quality materials, the 1Q Metric Male 74° Cone Seat is corrosion-resistant and durable, making it suitable for use in a wide range of industrial environments. It can be easily integrated into existing metric-based fluid systems, providing a secure and reliable seal that enhances the overall performance of the system.
In summary, the 1Q Metric Male 74° Cone Seat is a precision-engineered sealing component designed to offer optimal performance in metric-based fluid systems. Its secure threading system and robust cone seal make it a trusted solution for ensuring leak-free fluid transfer in a variety of industrial applications.
