PartNo.:20211
Description:20211-METRIC FEMALE FLAT SEAT
Convertible code:
Material:Carbon Steel 45#
SurfaceTreatment:Zinc,Cr3+Plating,Clear White
Corrossion Resistent Hour:120h or longer
Degree:Straight

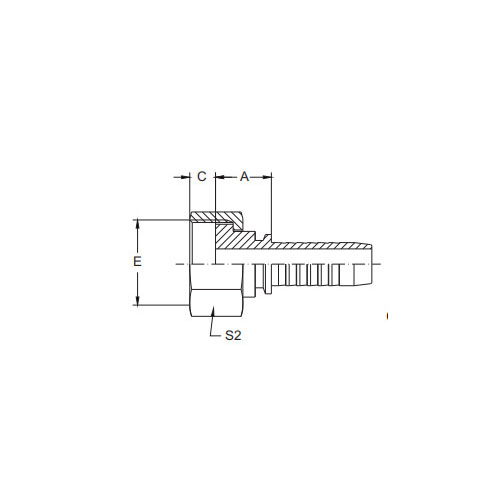

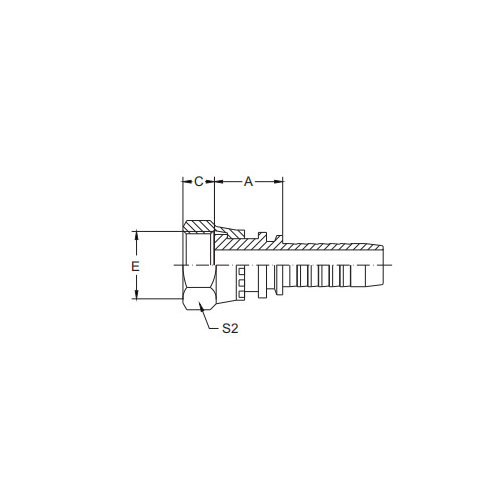

| PARTNO. | THREADE | HOSEBORE | DIMENSIONS | |||
| DN | DASH | A | C | S2 | ||
| 20211-12-03 | M12x1.5 | 5 | 3 | 14 | 8.5 | 17 |
| 20211-14-04 | M14x1.5 | 6 | 4 | 15.5 | 8.5 | 19 |
| 20211-14-05 | M14x1.5 | 8 | 5 | 15.5 | 8.5 | 19 |
| 20211-16-04 | M16x1.5 | 6 | 4 | 16.5 | 8.5 | 22 |
| 20211-16-05 | M16x1.5 | 8 | 5 | 16.5 | 8.5 | 22 |
| 20211-16-06 | M16x1.5 | 10 | 6 | 16.5 | 8.5 | 22 |
| 20211-18-05T | M18x1.5 | 8 | 5 | 16 | 8.5 | 24 |
| 20211-18-06 | M18x1.5 | 10 | 6 | 17.5 | 8.5 | 24 |
| 20211-22-06T | M22x1.5 | 10 | 6 | 16 | 10 | 27 |
| 20211-22-08 | M22x1.5 | 12 | 8 | 18.5 | 10 | 27 |
| 20211-22-10 | M22x1.5 | 16 | 10 | 19 | 10 | 27 |
| 20211-27-08T | M27x1.5 | 12 | 8 | 18.5 | 10 | 32 |
| 20211-27-10T | M27x1.5 | 16 | 10 | 19.5 | 10 | 32 |
| 20211-30-12 | M30x1.5 | 20 | 12 | 21.5 | 11 | 36 |
| 20211-36-12T | M36x2 | 20 | 12 | 20 | 13 | 41 |
| 20211-36-14T | M36x2 | 22 | 14 | 20 | 13 | 41 |
| 20211-39-16T | M39x2 | 25 | 16 | 23.5 | 13 | 46 |
| 20211-42-20W | M42x2 | 32 | 20 | 25 | 15 | 50 |
| 20211-45-20T | M45x2 | 32 | 20 | 25 | 15 | 55 |
| 20211-52-24T | M52x2 | 40 | 24 | 25 | 17 | 60 |
| 20211-60-28T | M60x2 | 45 | 28 | 26 | 20 | 70 |
| 20211-64-32T | M64x2 | 50 | 32 | 26 | 23 | 75 |
20211-Metric Female Flat Seat Introduction
The 20211-Metric Female Flat Seat is a high-performance fitting designed to deliver optimal sealing capabilities in metric fluid systems. This female-threaded fitting is equipped with a flat seating surface that ensures a secure and leak-resistant connection.
The flat seat design of the 20211-Metric Female Flat Seat provides a stable sealing interface, effectively preventing fluid leaks and maintaining system integrity. This makes it an excellent choice for applications that require a robust and reliable seal.
Manufactured from high-quality materials, this fitting is built to withstand the demands of various industrial and commercial applications. It exhibits excellent durability and resistance to corrosion, ensuring long-lasting performance even in harsh environments.
The precision engineering of the 20211-Metric Female Flat Seat ensures a smooth and seamless connection with corresponding male components. This not only simplifies the installation process but also enhances the reliability of the connection.
In addition, the metric threading of this fitting allows for easy integration into metric fluid systems, reducing the need for adapters or converters. This feature further enhances its versatility and makes it suitable for a wide range of applications.
Overall, the 20211-Metric Female Flat Seat is a reliable and efficient fitting that offers superior sealing capabilities and durability for metric fluid systems. Its precision engineering, high-quality materials, and metric threading make it a valuable addition to any industrial fluid system that demands secure and leak-free connections.
