PartNo.:20411

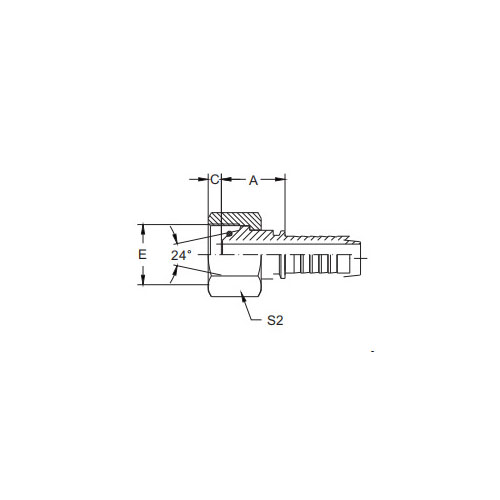

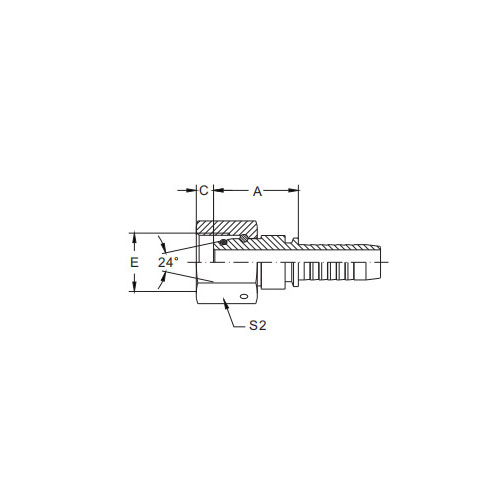

Description: 20411-METRIC FEMALE 24° CONE SEAT L.T.
Convertible code:
Material:Carbon Steel 45#
SurfaceTreatment: Zinc,Cr3+Plating,Clear White
Corrossion Resistent Hour: 120h or longer
Degree:Straight
| PARTNO. | THREADE | HOSEBORE | TUBEO.D. | ORING | DIMENSIONS | |||
| DN | DASH | A | C | S2 | ||||
| 20411-12-04 | M12x1.5 | 6 | 4 | 6 | O04.5x1.5 | 22.5 | 1.1 | 14 |
| 20411-14-04T | M14x1.5 | 6 | 4 | 8 | O06.5x1.5 | 22.5 | 1.1 | 17 |
| 20411-14-06 | M14x1.5 | 10 | 6 | 8 | O06.5x1.5 | 23 | 1.1 | 17 |
| 20411-16-04T | M16x1.5 | 6 | 4 | 10 | O08.0x1.5 | 20.5 | 2 | 19 |
| 20411-16-05T | M16x1.5 | 8 | 5 | 10 | O08.0x1.5 | 22 | 2 | 19 |
| 20411-16-06 | M16x1.5 | 10 | 6 | 10 | O08.0x1.5 | 23.5 | 1.3 | 19 |
| 20411-18-05T | M18x1.5 | 8 | 5 | 12 | O10.0x1.5 | 24.5 | 2 | 22 |
| 20411-18-06T | M18x1.5 | 10 | 6 | 12 | O10.0x1.5 | 27.5 | 2 | 22 |
| 20411-18-08 | M18x1.5 | 12 | 8 | 12 | O10.0x1.5 | 24.5 | 1.5 | 22 |
| 20411-22-05T | M22x1.5 | 8 | 5 | 15 | O12.0x2.0 | 26.5 | 2.5 | 27 |
| 20411-22-06T | M22x1.5 | 10 | 6 | 15 | O12.0x2.0 | 26.5 | 2.5 | 27 |
| 20411-22-08T | M22x1.5 | 12 | 8 | 15 | O12.0x2.0 | 29 | 2.5 | 27 |
| 20411-26-10T | M26x1.5 | 16 | 10 | 18 | O15.0x2.0 | 30 | 2 | 32 |
| 20411-26-12 | M26x1.5 | 20 | 12 | 18 | O15.0x2.0 | 27.5 | 2.5 | 32 |
| 20411-30-10T | M30x2 | 16 | 10 | 22 | O20.0x2.0 | 31 | 3 | 36 |
| 20411-30-12T | M30x2 | 20 | 12 | 22 | O20.0x2.0 | 34 | 3 | 36 |
| 20411-36-12T | M36x2 | 20 | 12 | 28 | O26.0x2.0 | 33 | 3.7 | 41 |
| 20411-36-14T | M36x2 | 22 | 14 | 28 | O26.0x2.0 | 33 | 3.7 | 41 |
| 20411-36-16T | M36x2 | 25 | 16 | 28 | O26.0x2.0 | 30 | 3.7 | 41 |
| 20411-45-16T | M45x2 | 25 | 16 | 35 | O32.0x2.5 | 37 | 3.5 | 50 |
| 20411-45-20T | M45x2 | 32 | 20 | 35 | O32.0x2.5 | 37.5 | 3.5 | 50 |
| 20411-52-20T | M52x2 | 32 | 20 | 42 | O38.0x2.5 | 38.5 | 4.5 | 60 |
| 20411-52-24T | M52x2 | 40 | 24 | 42 | O38.0x2.5 | 38.5 | 4.5 | 60 |
20411-Metric Female 24°Cone Seat L.T. Introduction
The 20411-Metric Female 24° Cone Seat L.T. is a precision-crafted component designed to provide a secure and leak-resistant connection in metric fluid systems, specifically optimized for low-temperature (L.T.) applications. This fitting incorporates a 24° cone seat, which offers exceptional sealing capabilities and ensures a robust, long-lasting connection.
The 24° cone seat is engineered to mate precisely with its corresponding male component, creating a secure seal that can withstand the rigors of both high pressure and low-temperature environments. This robust design ensures reliable performance even in extreme conditions, making it suitable for a wide range of industrial and commercial applications.
Manufactured from high-quality materials, the 20411-Metric Female 24° Cone Seat L.T. exhibits excellent durability and resistance to cold-related degradation. It maintains its sealing performance even under freezing conditions, ensuring continuous and reliable fluid flow.
Moreover, the compact design and smooth surfaces of the 20411-Metric Female 24° Cone Seat L.T. facilitate quick and easy installation and disassembly. This enhances operational efficiency and minimizes downtime, making it an ideal choice for systems that require frequent maintenance or modification.
In summary, the 20411-Metric Female 24° Cone Seat L.T. is a reliable and efficient solution for metric fluid systems operating under low-temperature conditions. Its precision engineering, high-quality materials, and optimized design for cold environments make it a valuable addition to any industrial or commercial fluid system that demands secure and leak-free connections.
