Part No.: 20711
Description: 20711-METRIC FEMALE 74° CONE SEAT
Convertible code:
Material: Carbon Steel 45#
Surface Treatment: Zinc, Cr3+Plating, Clear White
Corrossion Resistent Hour: 120h or longer
Degree: Straight

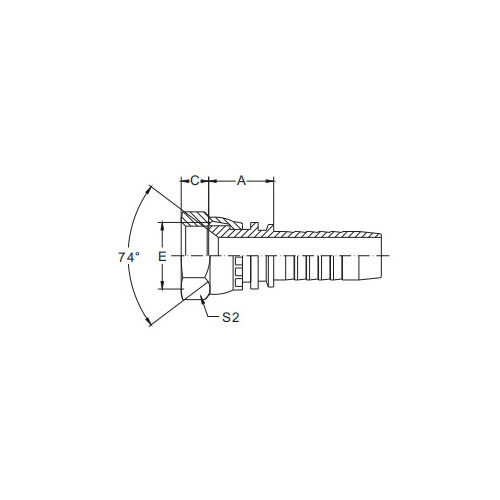

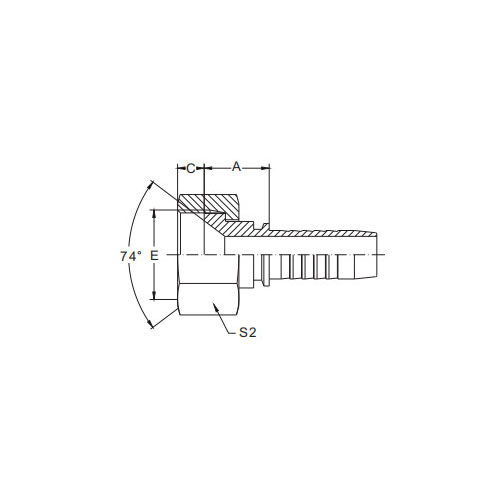

| PARTNO. | THREADE | HOSEBORE | DIMENSIONS | |||
| DN | DASH | A | C | S2 | ||
| 20711-12-03 | M12x1.5 | 5 | 3 | 14 | 9.5 | 17 |
| 20711-12-04 | M12x1.5 | 6 | 4 | 14.5 | 9.5 | 17 |
| 20711-14-04 | M14x1.5 | 6 | 4 | 17 | 9.5 | 19 |
| 20711-14-05 | M14x1.5 | 8 | 5 | 17 | 9.5 | 19 |
| 20711-14-06 | M14x1.5 | 10 | 6 | 17 | 9.5 | 19 |
| 20711-16-04 | M16x1.5 | 6 | 4 | 17.5 | 10.5 | 22 |
| 20711-16-05 | M16x1.5 | 8 | 5 | 17.5 | 10.5 | 22 |
| 20711-16-06 | M16x1.5 | 10 | 6 | 17.5 | 10.5 | 22 |
| 20711-18-05T | M18x1.5 | 8 | 5 | 16 | 10.5 | 22 |
| 20711-18-06 | M18x1.5 | 10 | 6 | 17.5 | 10.5 | 24 |
| 20711-20-06T | M20x1.5 | 10 | 6 | 16 | 10 | 24 |
| 20711-20-08 | M20x1.5 | 12 | 8 | 18.5 | 10 | 27 |
| 20711-22-06T | M22x1.5 | 10 | 6 | 16 | 10.5 | 27 |
| 20711-22-08 | M22x1.5 | 12 | 8 | 18.5 | 10.5 | 27 |
| 20711-22-10 | M22x1.5 | 16 | 10 | 19 | 10.5 | 27 |
| 20711-24-08T | M24x1.5 | 12 | 8 | 17.5 | 11 | 30 |
| 20711-27-08T | M27x1.5 | 12 | 8 | 18.5 | 11 | 32 |
| 20711-27-10T | M27x1.5 | 16 | 10 | 19.5 | 11 | 32 |
| 20711-27-12 | M27x1.5 | 20 | 12 | 21.5 | 11 | 32 |
| 20711-30-10T | M30x1.5 | 16 | 10 | 18 | 11 | 36 |
| 20711-30-12 | M30x1.5 | 20 | 12 | 21.5 | 11 | 36 |
| 20711-33-10T | M33x2 | 16 | 10 | 19.5 | 14 | 41 |
| 20711-33-12T | M33x2 | 20 | 12 | 20 | 14 | 41 |
| 20711-33-14 | M33x2 | 22 | 14 | 21.5 | 14 | 41 |
| 20711-36-12T | M36x2 | 20 | 12 | 20 | 14.5 | 41 |
| 20711-36-14T | M36x2 | 22 | 14 | 20 | 14.5 | 41 |
| 20711-36-16 | M36x2 | 25 | 16 | 22.5 | 14.5 | 41 |
| 20711-39-16T | M39x2 | 25 | 16 | 23.5 | 15 | 46 |
| 20711-42-16T | M42x2 | 25 | 16 | 23.5 | 15.5 | 50 |
| 20711-42-20W | M42x2 | 32 | 20 | 24.5 | 15.5 | 50 |
| 20711-45-20T | M45x2 | 32 | 20 | 25 | 16 | 55 |
| 20711-52-24T | M52x2 | 40 | 24 | 25 | 17 | 60 |
20711-Metric Female 74° Cone Seat Introduction
The 20711-Metric Female 74° Cone Seat is a precision-engineered fitting designed to provide a secure and reliable connection in metric piping systems. This fitting features a 74° cone seat, which offers superior sealing capabilities and ensures a tight, leak-free fit.
The cone seat design of the 20711-Metric Female 74° Cone Seat allows for a secure connection with compatible male cone-threaded components. The 74° angle of the cone seat ensures a snug and secure fit, minimizing the risk of leaks or slippage.
Manufactured from high-quality materials, this fitting exhibits excellent corrosion resistance and durability, making it suitable for use in various industrial applications and environments. Whether it's in high-pressure fluid systems, chemical processing plants, or any other metric piping scenario, the 20711-Metric Female 74° Cone Seat can deliver reliable performance.
The precision threading and cone seat design work together to create a robust and long-lasting seal. This ensures that the fitting can maintain its sealing performance over time, even under challenging conditions.
In summary, the 20711-Metric Female 74° Cone Seat is an ideal choice for those seeking a secure and reliable metric female threaded connection. Its superior sealing capabilities, high-quality materials, and precision engineering make it a robust solution for your metric piping needs.
