Part No.:20191
Description: 20191-90°METRIC FEMALE MULTISEAL
Convertible code:
Material:Carbon Steel 45#
Surface Treatment: Zinc, Cr3+Plating, Clear White
Corrossion Resistent Hour: 120h or longer
Degree:90°

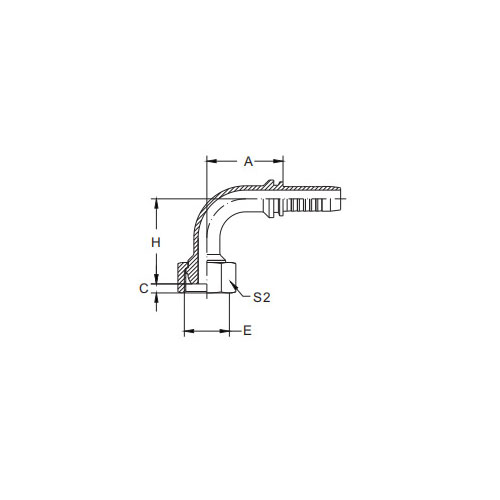

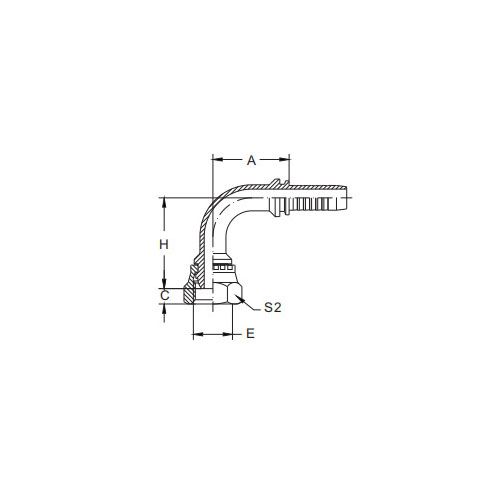

| PARTNO. | THREADE | HOSEBORE | DIMENSIONS | ||||
| DN | DASH | A | C | H | S2 | ||
| 20191-10-03 | M10x1 | 5 | 3 | 27 | 2.5 | 35.5 | 14 |
| 20191-12-04 | M12x1.5 | 6 | 4 | 30 | 4 | 37.5 | 17 |
| 20191-14-04T | M14x1.5 | 6 | 4 | 30 | 4 | 38 | 17 |
| 20191-14-05 | M14x1.5 | 8 | 5 | 30 | 4 | 41 | 19 |
| 20191-16-04T | M16x1.5 | 6 | 4 | 30 | 4 | 38.5 | 19 |
| 20191-16-05T | M16x1.5 | 8 | 5 | 33 | 4 | 41.5 | 19 |
| 20191-16-06 | M16x1.5 | 10 | 6 | 35.3 | 4 | 43.8 | 22 |
| 20191-18-05T | M18x1.5 | 8 | 5 | 33 | 4 | 43 | 22 |
| 20191-18-06T | M18x1.5 | 10 | 6 | 35.3 | 4 | 45.3 | 22 |
| 20191-18-08 | M18x1.5 | 12 | 8 | 40.5 | 4 | 50.5 | 24 |
| 20191-20-06T | M20x1.5 | 10 | 6 | 35.3 | 5.5 | 43.8 | 24 |
| 20191-20-08 | M20x1.5 | 12 | 8 | 39.5 | 5.5 | 52 | 27 |
| 20191-22-06T | M22x1.5 | 10 | 6 | 35.3 | 5 | 44.3 | 27 |
| 20191-22-08T | M22x1.5 | 12 | 8 | 41 | 5 | 53 | 27 |
| 20191-24-08T | M24x1.5 | 12 | 8 | 41 | 5.5 | 51 | 30 |
| 20191-24-10 | M24x1.5 | 16 | 10 | 58 | 5.5 | 58.5 | 30 |
| 20191-27-10DT | M27x1.5 | 16 | 10 | 56 | 5.5 | 55.5 | 32 |
| 20191-27-10T | M27x2 | 16 | 10 | 56 | 5.5 | 55.5 | 32 |
| 20191-30-12DT | M30x1.5 | 20 | 12 | 67.5 | 6 | 68.5 | 36 |
| 20191-30-12T | M30x2 | 20 | 12 | 66.2 | 6 | 68.5 | 36 |
| 20191-36-12T | M36x2 | 20 | 12 | 65.5 | 7 | 67 | 41 |
| 20191-36-14T | M36x2 | 22 | 14 | 71.2 | 7 | 69 | 41 |
| 20191-39-16T | M39x2 | 25 | 16 | 78 | 7 | 73.5 | 46 |
| 20191-45-20T | M45x2 | 32 | 20 | 91.5 | 8.5 | 85 | 55 |
| 20191-52-24T | M52x2 | 40 | 24 | 109.4 | 9 | 100 | 60 |
| 20191-64-32T | M64x2 | 50 | 32 | 131 | 14 | 122.3 | 75 |
20191-90°Metric Female Multiseal Introduction
The 20191-90°Metric Female Multiseal is a high-performance fitting designed to provide a secure and leak-free connection in metric piping systems. This multiseal fitting offers enhanced sealing capabilities, ensuring reliable performance even in challenging environments or under high-pressure conditions.
The key feature of this fitting is its 90° metric female thread design, which allows for easy installation and connection to compatible male threaded components. The threads are precision-cut to ensure a tight and secure fit, minimizing the risk of leaks or slippage.
The multiseal aspect of the fitting refers to its ability to provide multiple layers of sealing, ensuring a robust and long-lasting seal. This feature is achieved through the use of specialized sealing materials and design elements that work together to create a reliable seal against fluids or gases passing through the connection.
The 20191-90°Metric Female Multiseal is made from high-quality materials that offer excellent corrosion resistance and durability. This ensures that the fitting can withstand harsh conditions and maintain its sealing performance over time.
Whether used in industrial fluid handling systems, plumbing applications, or any other metric piping system that requires a secure and reliable connection, the 20191-90°Metric Female Multiseal is an ideal choice. Its precision threading, multiseal design, and high-quality materials contribute to a robust and long-lasting solution for your piping needs.
